2012 International Plumbing Code Roof Scupper Sizing / Code Check 7th ed. NEW! - An illustrated guide to building ... / By the 1997 edition of the upc, section 1101.11.2 had been added that completely prescribed where and how secondary roof drainage was to be provided.

2012 International Plumbing Code Roof Scupper Sizing / Code Check 7th ed. NEW! - An illustrated guide to building ... / By the 1997 edition of the upc, section 1101.11.2 had been added that completely prescribed where and how secondary roof drainage was to be provided.. The elevation of scuppers must be set to prevent the water level on the roof from exceeding the structural capacity of the roof. Parapet wall roof drainage scupper and overflow scupper location shall comply with the requirements of section 1503.4 of the international building code. 2012 code:308.9 parallel w ater distribution systems. This wizard makes it easy to calculate the roof design area by providing various shape calculations and the calculation for vertical walls area per international plumbing code (ipc). Secondary (emergency) roof drain systems shall be sized in accordance with section 1106 based on the rainfall rate for which the primary system is sized.

1106.6 size of roof gutters. When scuppers are used for primary and/or secondary (emergency overflow) roof drainage, the quantity, size, location and inlet elevation of the scuppers shall be sized to prevent the depth of ponding water from exceeding that for which the roof was designed as determined by scupper openings shall Roof drainage requirements are included in both the building code and the plumbing code. Parapet wall roof drainage scupper and overflow scupper location shall comply with the requirements of section 1503.4 of the international building code. Scupper international code council ® 2018 pmg sigchanges.indb 67 9/21/2017 8:58:14 am this excerpt is taken from significant changes to the international plumbing code®, international mechanical code.

Industry Leading Downspout Debris Filter for Roof Runoff ... from biocleanenvironmental.com

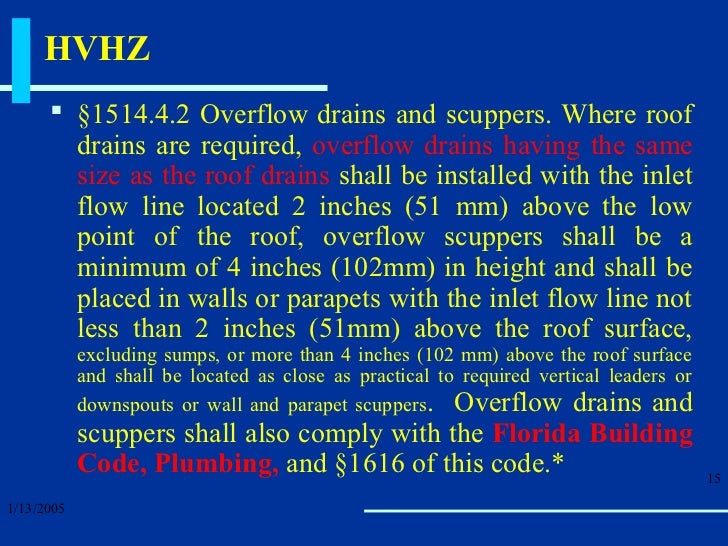

The scuppers are soldered into a formed gravel‐stop fascia system. Flat roof draining and gutters. Size horizontal storm drainage piping. Using tools from the international plumbing code (ipc) it's not that hard. Scuppers shall be sized in accordance with table 1106.7. Mar 12, 2012 #1 the old 2002 california plumbing code (2006 upc) section 1101.11.2.1 stated that roof secondary drain / overflow scuppers needed to have three times the size of the roof drains of the roof drains and having a minimum opening height of 4 inches. Overflow drains shall be the same size as the roof drains with the inlet flow line two inches above the low point of the roof and shall be installed independent from the roof drains. The installation and sizing of secondary emergency overflow drains, leaders and conductors shall comply with sections 1106 and 1108, as applicable, of the international plumbing code.

The installation and sizing of secondary emergency overflow drains, leaders and conductors shall comply with sections 1106 and 1108, as applicable, of the international plumbing code.

This wizard makes it easy to calculate the roof design area by providing various shape calculations and the calculation for vertical walls area per international plumbing code (ipc). Jump to full code chapter. Part 890 illinois plumbing code the general assembly's illinois administrative code database includes only those rulemakings that have been permanently adopted. Horizontally projected roof area (square feet) Mar 12, 2012 #1 the old 2002 california plumbing code (2006 upc) section 1101.11.2.1 stated that roof secondary drain / overflow scuppers needed to have three times the size of the roof drains of the roof drains and having a minimum opening height of 4 inches. For the purposes of this appendix the following metric conversions are applicable: The upc remains the same in the storm drainage section as the 2012 edition. In parallel water distribution systems, the hot and cold water piping may now be grouped in the same pipe bundle. Overflow drains shall be the same size as the roof drains with the inlet flow line two inches above the low point of the roof and shall be installed independent from the roof drains. Provided that chapters 12 and 15 of this code are not adopted. When scuppers are used for primary and/or secondary (emergency overflow) roof drainage, the quantity, size, location and inlet elevation of the scuppers shall be sized to prevent the depth of ponding water from exceeding that for which the roof was designed as determined by scupper openings shall The roof in such a manner that water will be entrapped if the primary drains allow buildup for any reason. Scuppers shall be sized to prevent the depth of ponding water from exceeding that for which the roof was designed as determined by section 1101.7.

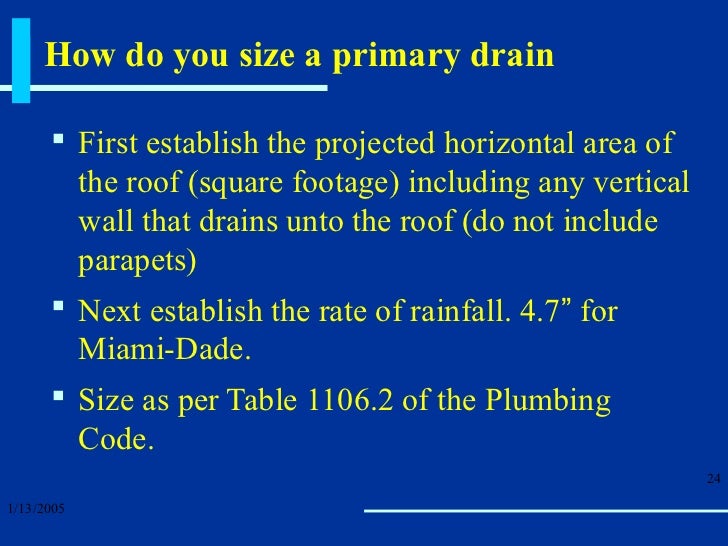

Ipc provides four steps to size the roof drains on a building: The front rim of the gutter must be 1 in. 2012 code:308.9 parallel w ater distribution systems. Jump to full code chapter. Code (upc) (iapmo 2012) and the international plumbing code (ipc) (icc 2012b).

Software Packages - HVAC Design Solutions from hvacdesignsolutions2.files.wordpress.com

Mar 12, 2012 #1 the old 2002 california plumbing code (2006 upc) section 1101.11.2.1 stated that roof secondary drain / overflow scuppers needed to have three times the size of the roof drains of the roof drains and having a minimum opening height of 4 inches. Below the back edge, and it should be below the nailers used to elevate the roof edge. The installation and sizing of secondary emergency overflow drains, leaders and conductors shall comply with sections 1106 and 1108, as applicable, of the international plumbing code. The size of semicircular gutters shall be based on the maximum projected roof area in accordance with table 1106.6. Note how the secondary (overflow) scuppers are higher than the primary scuppers. I often receive requests to write a column on certain issues. Parapet wall roof drainage scupper and overflow scupper location shall comply with the requirements of section 1503.4 of the international building code. 2012 code:308.9 parallel w ater distribution systems.

The most requested subject matter, by far, is the new sizing method for roof (storm) drainage systems.

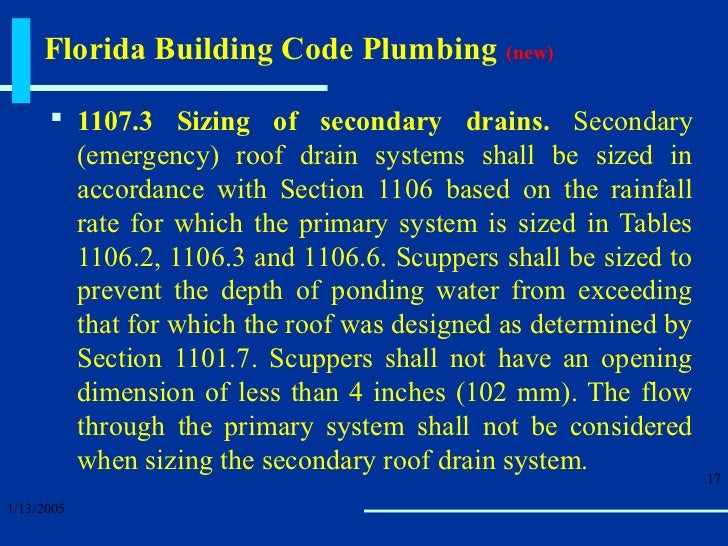

Parapet wall roof drainage scupper and overflow scupper location shall comply with the requirements of section 1503.4 of the international building code. The scuppers are soldered into a formed gravel‐stop fascia system. Overflow drains shall be the same size as the roof drains with the inlet flow line two inches above the low point of the roof and shall be installed independent from the roof drains. Roof drain system and size the scuppers, denoting the required head of water above the scupper for the structural engineer. Jump to full code chapter. Part 890 illinois plumbing code the general assembly's illinois administrative code database includes only those rulemakings that have been permanently adopted. The size of a combination waste and vent pipe shall be not less than that indicated in table 915.3 2.2. Select number of roof drains and calculate the roof area sloped to each drain. Code requirements adopted in some states and localities may vary. Scuppers shall not have an opening dimension of less than 4 inches. Secondary (emergency) roof drain systems shall be sized in accordance with section 1106 based on the rainfall rate for which the primary system is sized. The suggested maximum scupper interval is 10 ft. The size of semicircular gutters shall be based on the maximum projected roof area in accordance with table 1106.6.

Size horizontal storm drainage piping. This wizard makes it easy to calculate the roof design area by providing various shape calculations and the calculation for vertical walls area per international plumbing code (ipc). Scuppers shall be sized in accordance with table 1106.7. Mar 12, 2012 #1 the old 2002 california plumbing code (2006 upc) section 1101.11.2.1 stated that roof secondary drain / overflow scuppers needed to have three times the size of the roof drains of the roof drains and having a minimum opening height of 4 inches. In parallel water distribution systems, the hot and cold water piping may now be grouped in the same pipe bundle.

Code requirements adopted in some states and localities may vary. The elevation of scuppers must be set to prevent the water level on the roof from exceeding the structural capacity of the roof. The most requested subject matter, by far, is the new sizing method for roof (storm) drainage systems. Scuppers that empty into a gutter may be integrated with a roof edge. Parapet wall roof drainage scupper and overflow scupper location shall comply with the requirements of section 1503.4 of the international building code. Scuppers can also be provided as primary or secondary drainage points. Upc section 1101.11.1 states that for the primary roof drainage the location and sizing of drains and gutters shall be coordinated with the structural design and pitch of the roof, implying that the The front rim of the gutter must be 1 in.

This wizard makes it easy to calculate the roof design area by providing various shape calculations and the calculation for vertical walls area per international plumbing code (ipc).

The upc remains the same in the storm drainage section as the 2012 edition. This wizard makes it easy to calculate the roof design area by providing various shape calculations and the calculation for vertical walls area per international plumbing code (ipc). 1106.6 size of roof gutters. When scuppers are used for primary and/or secondary (emergency overflow) roof drainage, the quantity, size, location and inlet elevation of the scuppers shall be sized to prevent the depth of ponding water from exceeding that for which the roof was designed as determined by scupper openings shall This article references the 2009 international building code (ibc) and the 2009 international plumbing code (ipc). The 2012 edition of the uniform plumbing code, including appendices a, b, and i, published by the international association of plumbing and mechanical officials, is hereby adopted by reference with the following additions, deletions and exceptions: In parallel water distribution systems, the hot and cold water piping may now be grouped in the same pipe bundle. For the purposes of this appendix the following metric conversions are applicable: Flat roof draining and gutters. The size of semicircular gutters shall be based on the maximum projected roof area in accordance with table 1106.6. By the 1997 edition of the upc, section 1101.11.2 had been added that completely prescribed where and how secondary roof drainage was to be provided. Select number of roof drains and calculate the roof area sloped to each drain. If the scuppers are used as primary drainage, then they are applied flush with the roof level.

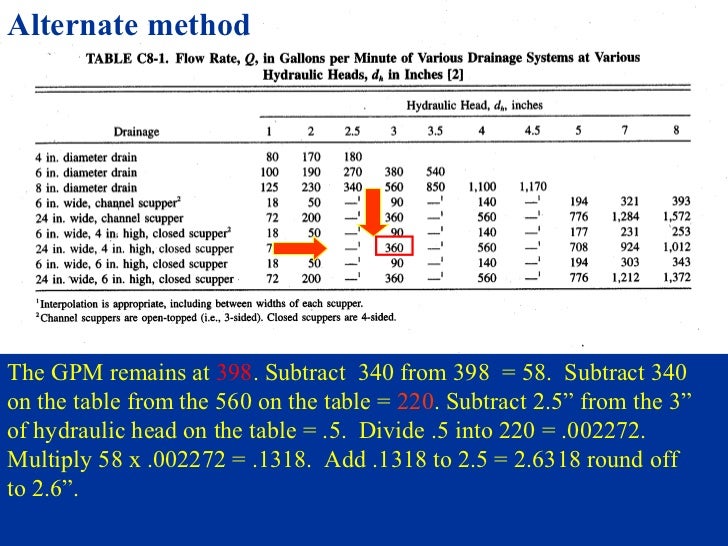

Source: image.slidesharecdn.com

When scuppers are used for primary and/or secondary (emergency overflow) roof drainage, the quantity, size, location and inlet elevation of the scuppers shall be sized to prevent the depth of ponding water from exceeding that for which the roof was designed as determined by scupper openings shall When scuppers are used for secondary (emergency overflow) roof drainage, the quantity, size, location and inlet elevation of the scuppers shall be sized to prevent the depth of ponding water from exceeding that for which the roof was designed as determined by section 1611.1. The elevation of scuppers must be set to prevent the water level on the roof from exceeding the structural capacity of the roof. Smacna's new downspout and gutter sizing calculator enables the user to manually enter the design area of the roof or use the design area wizard for the calculation. By the 1997 edition of the upc, section 1101.11.2 had been added that completely prescribed where and how secondary roof drainage was to be provided.
